ringlock system scaffold from ADTO Scaffold in China, factory prices with large stocks
Layer type of ringlock system scaffold from ADTO Scaffold in China, factory prices with large stocks
1. Material: Q345 tube for vertical standard, Q235 for other components or as your request
2. Diameter: 48.3mm / 1.9’
3. Thickness of the tube: 3.2MM Standard
2. Diameter: 48.3mm / 1.9’
3. Thickness of the tube: 3.2MM Standard
4. Rosette: Q345, 10MM thickness
5. Components: Standard, Ledger, Brace, Plank, Ladder, Base jack, Rosette, Start collar
6. Standard with spigot, ledger and brace with forged connect point
7. Having our own HDG workshop. we can control the zinc thickness much better
8. Port of loading: Tianjin
9. Payment Terms: 30% payment in advance, 70% against the copy of B/L
10. Samples are available
6. Standard with spigot, ledger and brace with forged connect point
7. Having our own HDG workshop. we can control the zinc thickness much better
8. Port of loading: Tianjin
9. Payment Terms: 30% payment in advance, 70% against the copy of B/L
10. Samples are available
Model No.
|
Name
|
Specification
|
Unit Weight
LBS/PCS |
Vertical Standard: OD 48.3* TK3.2mm, Q345 steel tube, Hot Dip Galvanized
| |||
YP-VS-0.5
|
Vertical with spigot
|
500mm (1'8'')
|
6.4
|
YP-VS-1.0
|
Vertical with spigot
|
1000mm (3'3'')
|
11.8
|
YP-VS-1.5
|
Vertical with spigot
|
1500mm (4'11'')
|
17.1
|
YP-VS-2.0
|
Vertical with spigot
|
2000mm (6'6‘’)
|
22.4
|
YP-VS-2.5
|
Vertical with spigot
|
2500mm (8'2‘’)
|
27.8
|
YP-VS-3.0
|
Vertical with spigot
|
3000mm (9'10'')
|
33.1
|
Horizontal Leger: OD 48.3* TK3.2mm, Q345 steel tube, Hot Dip Galvanized
| |||
YP-HL-3
|
Horizontal
|
914mm (3')
|
9.5
|
YP-HL-4
|
Horizontal
|
1219mm (4')
|
12.1
|
YP-HL-5
|
Horizontal
|
1524mm (5')
|
14.5
|
YP-HL-6
|
Horizontal
|
1829mm (6')
|
17.2
|
YP-HL-7
|
Horizontal
|
2133mm (7')
|
19.56
|
YP-HL-8
|
Horizontal
|
2438mm (8')
|
22.4
|
YP-HL-10
|
Horizontal
|
3048mm (10')
|
27.13
|
Diagonal Brace: OD 48.3*TK2.4mm, Q345 steel tube, Hot Dip Galvanized
| |||
YP-DB-3
|
Diagonal Brace
|
914mm(3')
|
17.4
|
YP-DB-4
|
Diagonal Brace
|
1219mm (4')
|
18.1
|
YP-DB-5
|
Diagonal Brace
|
1524mm (5')
|
19
|
YP-DB-6
|
Diagonal Brace
|
1829mm (6')
|
20.3
|
YP-DB-7
|
Diagonal Brace
|
2133mm (7')
|
21.73
|
YP-DB-8
|
Diagonal Brace
|
2438mm (8')
|
23
|
YP-DB 10
|
Diagonal Brace
|
3048mm (10')
|
26.18
|
Ringlock Accessories
| |||
YP-BC-280
|
Base Collar
|
57*3.5*280mm
|
3.85
|
YP-AJB-38
|
Electro-galvanized
Jack Base |
38*4*610mm (24'')
Plate: 150*150*6mm |
7.85
|
YP-SB1
|
1‘4’‘ Side Bracket
|
400mm
|
10.77
|
YP-SB2
|
2’2‘’ Side Bracket
|
650mm
|
14.81
|
YP-SB3
|
2‘11’‘ Side Bracket
|
880mm
|
17.91
|
YP-DB-6
|
Double Ledger
|
1829mm (6')
|
27.06
|
YP-IT-3
|
Intermediate Transon
|
914mm (3')
|
10.36
|
YP-SQ770
|
HDG Square Pallet
|
1060x1060x770mm
|
140
|
YP-P-3
|
Steel Planks
|
914mm (3')
|
14.83
|
YP-P-4
|
Steel Planks
|
1219mm (4')
|
18.88
|
YP-P-5
|
Steel Planks
|
1524mm (5')
|
22.92
|
YP-P-6
|
Steel Planks
|
1829mm (6')
|
26.97
|
YP-P-7
|
Steel Planks
|
2133mm (7')
|
31.02
|
YP-P-8
|
Steel Planks
|
2438mm (8')
|
35.07
|
YP-P-10
|
Steel Planks
|
3048mm (10')
|
43.56
|

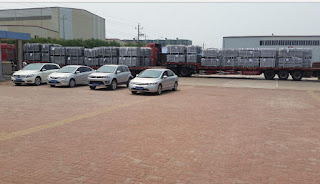

10 containers of ringlock systems were to be shipped today, see below pictures:
ADTO GROUP is a professional manufacturer for steel scaffolding and aluminum formwork since 1998, head quarter in changsha, with 8 production bases in tianjin, shanghai and huhan. ADTO Scaffold, as the main subsidiaries, with a wide range of scaffolding as below:
1). system scaffold,
2). frame scaffold and cross brace
3). tube and fittings,
4). sidewalk sheds system,
5). steel planks,
6). screw jack
7). aluminum planks and alu/plywood deck
8). aluminum ladders
9). aluminum formwork
ADTO GROUP
Floor 11,15,16,18,19,20, Mingcheng Int. Bd., No.46 East Renmin Road, Changsha 414000, China
Tel: +86 731 82811865 Fax: +86 731 88660576
Cell/Wechat/WhatsApp: +86 13510448495
